Shakespeare 5401-XT Galaxy 4' Antenna - 3dB Gain [5401-XT]
$257.38
$321.73

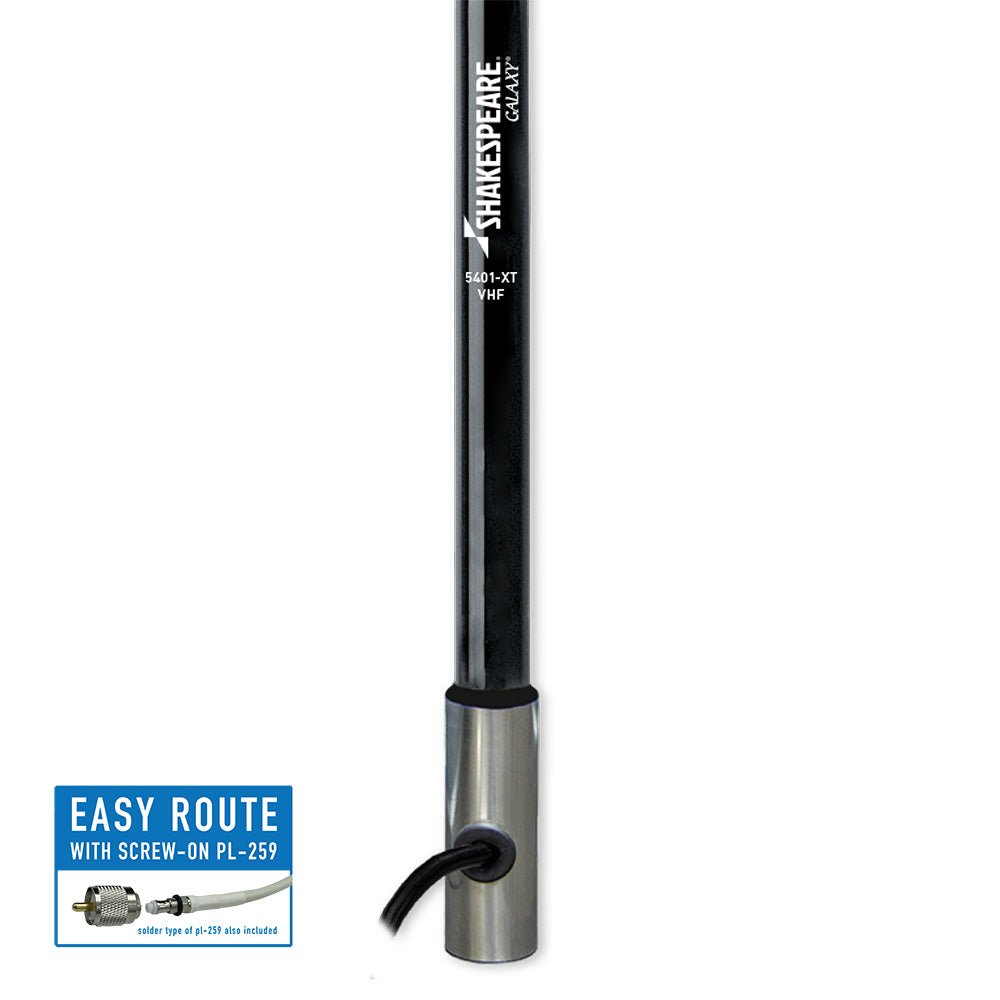

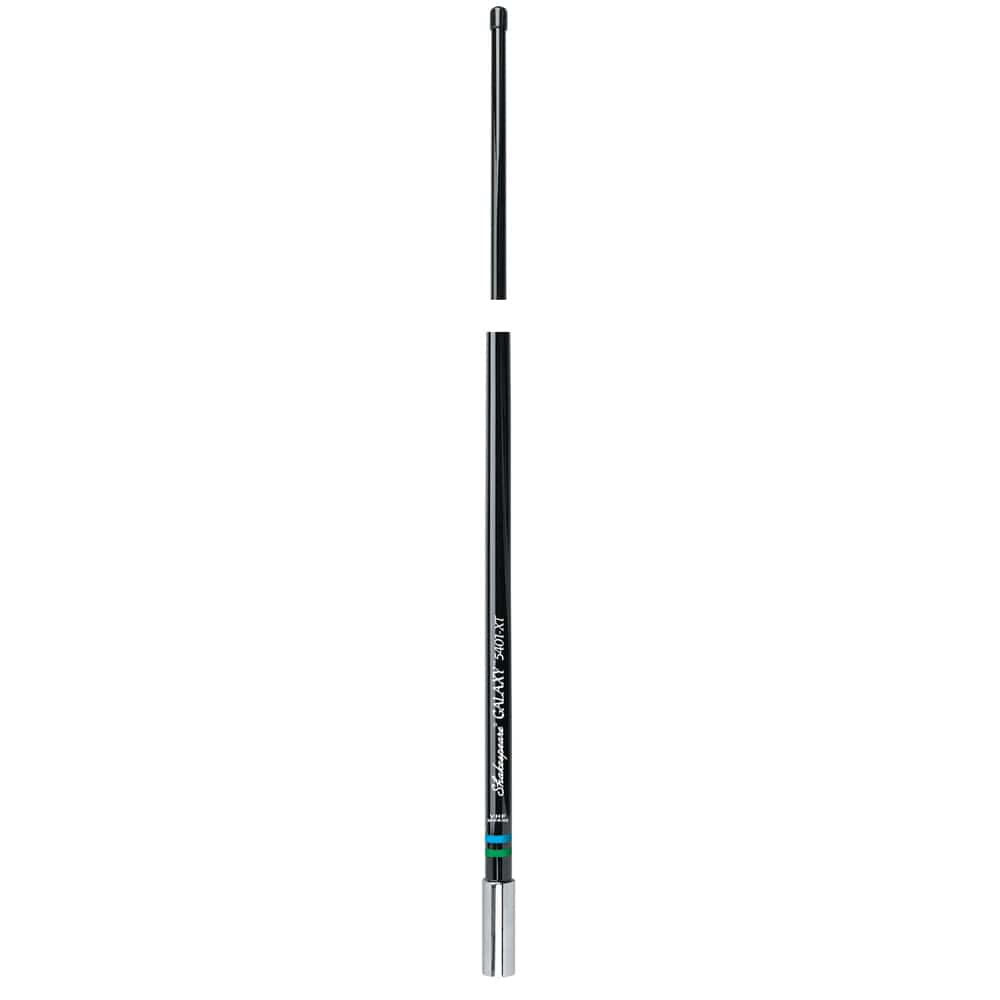

5401-XT Galaxy 4' Antenna - 3dB Gain
This antenna is the same as the Style 5400-XT, but in an exclusive black Galaxy finish. It's an outstanding, 4' antenna of heavy-duty construction for general purpose communications. Its at home on T-tops, hard-tops and other positions aloft, where its small size can deliver maximum range.
Features:
- Center-fed 1/2 wave coaxial sleeve
- Brass and copper elements for maximum range
- Stainless steel ferrule with standard 1"-14 thread
- Includes 20' RG-8/X cable and a PL-259 connector
- Suggested mount: Shakespeare Style 4187 Ratchet Mount
- One section
- Shakespeare Limited Warranty: 5 years
- Includes FME Cables
Technical Specifications:
- Frequency: VHF Marine Band
- Bandwidth: 5 MHz within 2.0:1 VSWR
- SWR: Nominally 1.5:1 at 156.8 MHz
- Gain: 3 dB
- Max Input (Watts): 50 watts
- Height (feet): 4
Specifications:
- Antenna Band: VHF
- Color: Black
- Construction: Fiberglass
- Ferrule Type: Stainless Steel
- Length (Inches): 48"
- Box Dimensions: 3"H x 3"W x 55"L WT: 3.1 lbs
- UPC: 719441100612
Quick Guide (pdf)
