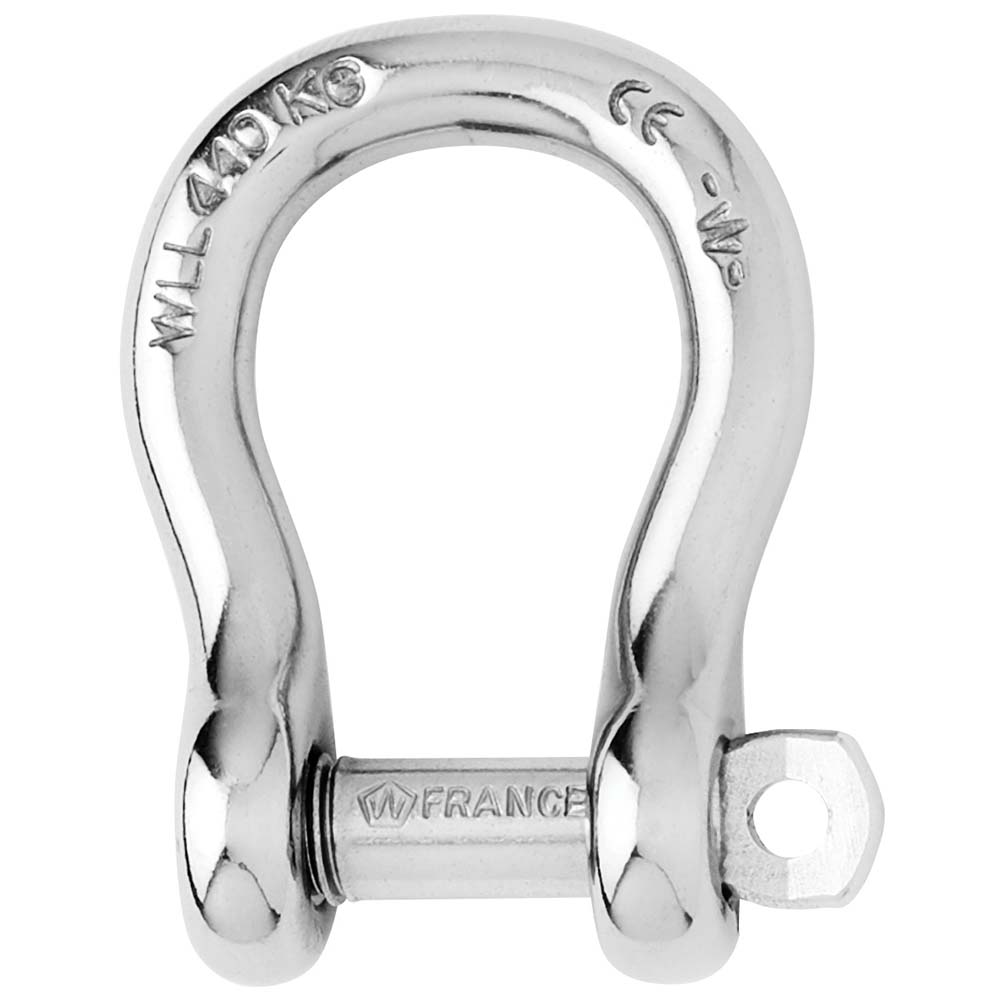

Wichard Captive Pin Bow Shackle - Diameter 6mm - 1/4" [01443]
$45.86
$53.95
Captive Pin Bow Shackle - Diameter 6mm - 1/4"
Features:
- Captive pin bow shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- Single handed operation for more safety
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 1320
- WLL (lb) 970
- Breaking load (lb) 4850
- Weight (lb) 0.073

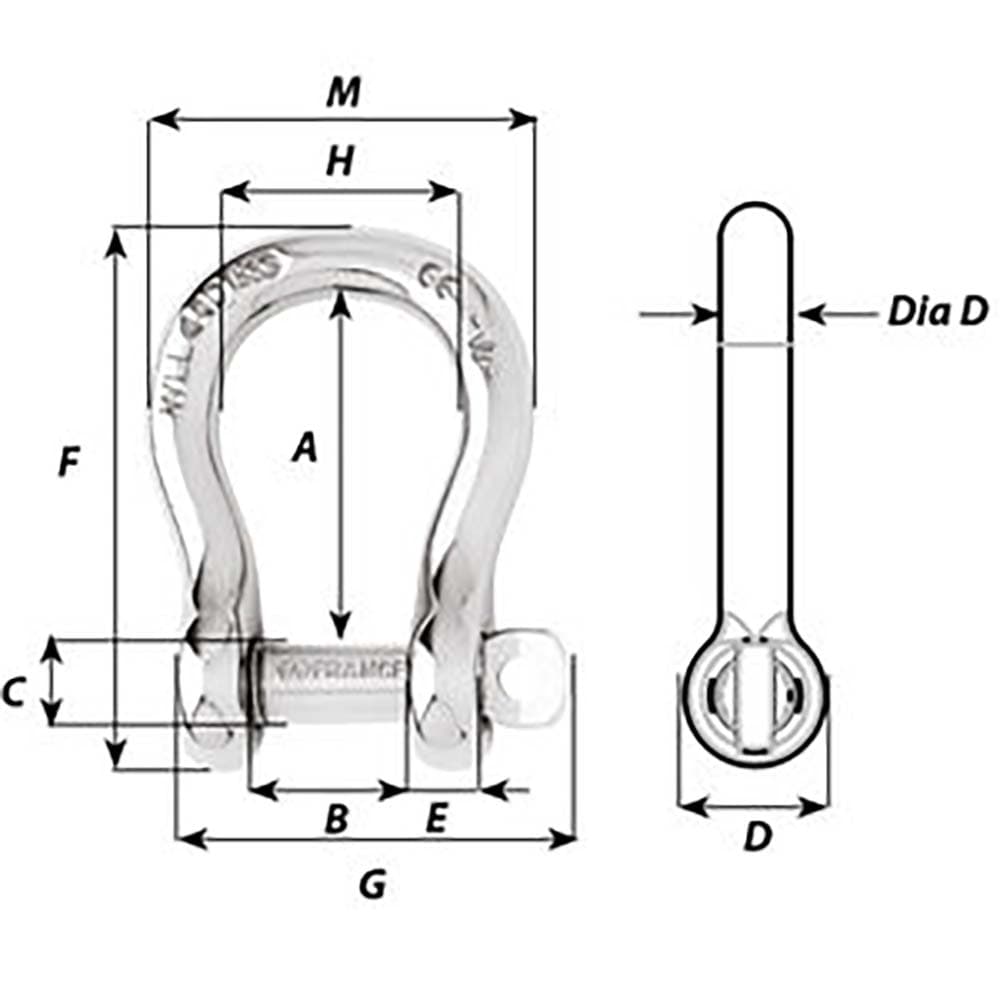

Dimensions (see 2nd image):
- A (inch) 1-1/16"
- B (inch) 15/32"
- C (inch) 9/32"
- D (inch) 35/64"
- D diameter (inch) 15/64"
- E (inch) 15/64"
- M (inch) 1-7/32"
