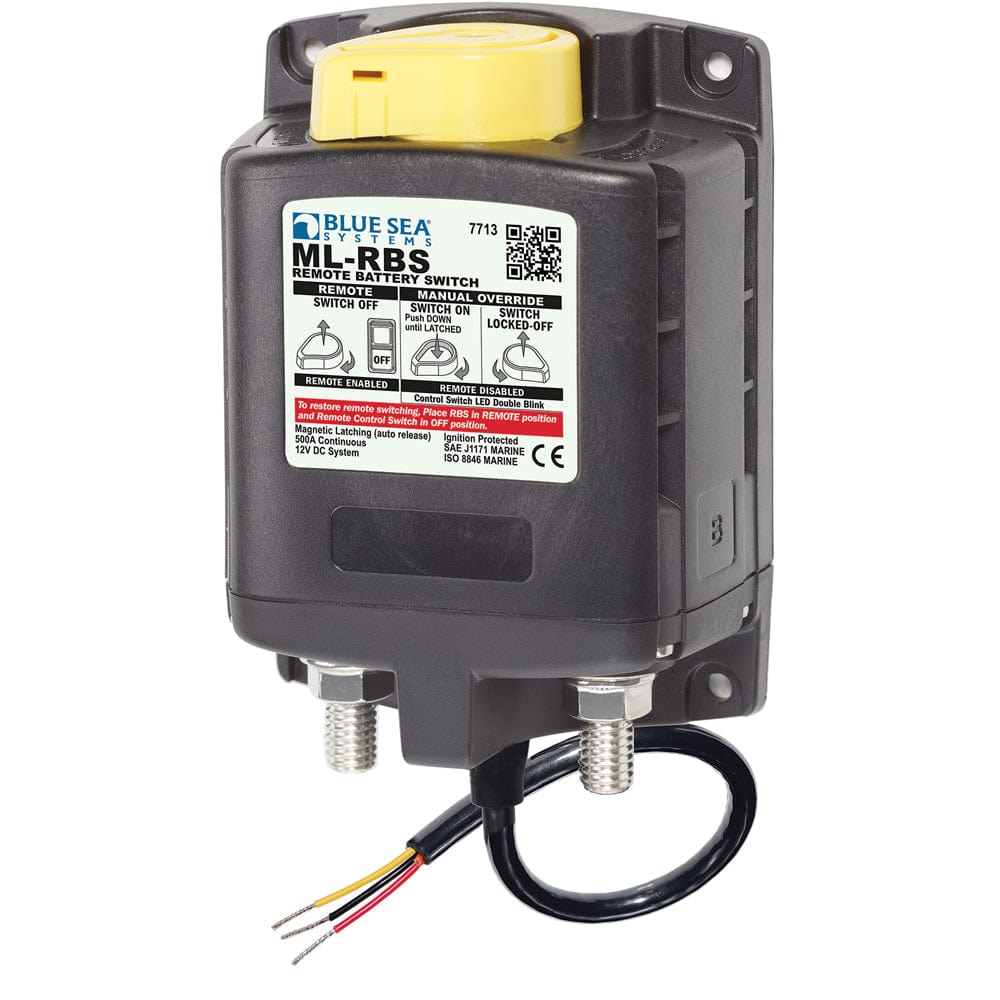

Blue Sea 7713 ML-RBS Remote Battery Switch w/Manual Control Release - 12V [7713]

ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V

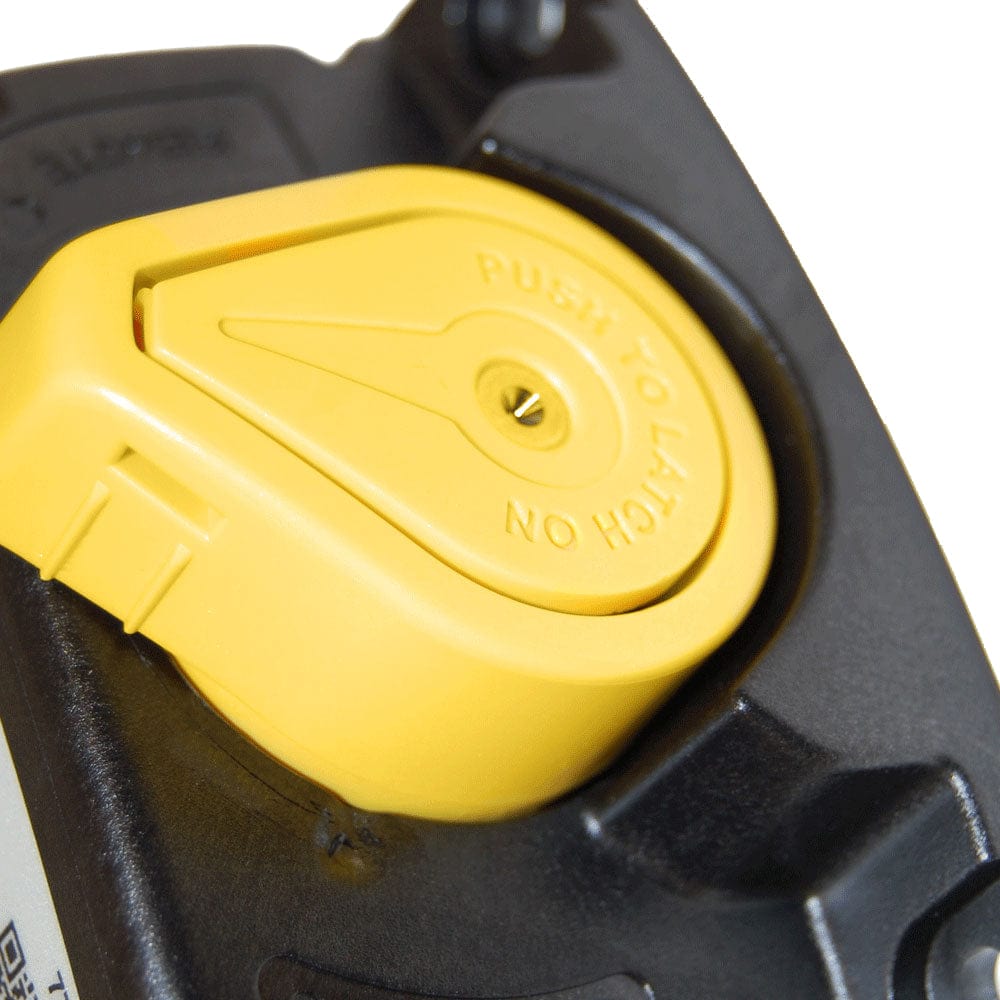

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing

• LED output to remotely indicate switch state - requires optional LED

• 3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance

• 7/ 8" (22mm) stud length accepts multiple cable terminals

• Label recesses for circuit identification

• Silver alloy contacts provide high reliability for switching live loads

Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired

Specifications
Control Circuit Connection:Tinned Wire
Nominal Voltage:12V DC
Coil Function: Auto releasing
Mounting:t#10
Amperage Operating Current:8mA when OFF/13mA when ON
Amperage Operating Current when changing state:t<7A (40 ms)
Control Circuit Voltage:t10.1 to 16.5V DC
Continuous Rating: 500A
Intermittent Rating: t700A (5 min)
Cranking Rating: 10 sec 2500A
Cranking Rating: 1 min 1100A
Minimum Operating Temperature:t-10° C
Maximum Operating Temperature:t50° C
Cable Size to Meet Ratings:t2x (4/0)
Live Current Switching:t300A @ 12V DC 10,000 Cycles
Master Control Switch Capability:tYes
Mechanical Endurance:t100,000 Cycles
Switching Cycles:t100,000
Terminal Ring Diameter Clearance:t1.18" (29.97mm)
Terminal Stud Length:t0.875" (22.23mm)
Terminal Stud Size:t3/8-16 (M10)
Terminal Stud Torque:t140 in-lb (15.82 Nm)
Weight:t1.75lb (0.79 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Lockable: Yes
• Continuous Amperage: 500a
• Box Dimensions: 3"H x 7"W x 12"L WT: 2.1 lbs
• UPC: 632085077129
