Veratron 52mm (2-1/16") Viewline Voltmeter 18-32V - Black Dial Bezel [A2C59512458]
$54.89
$60.99

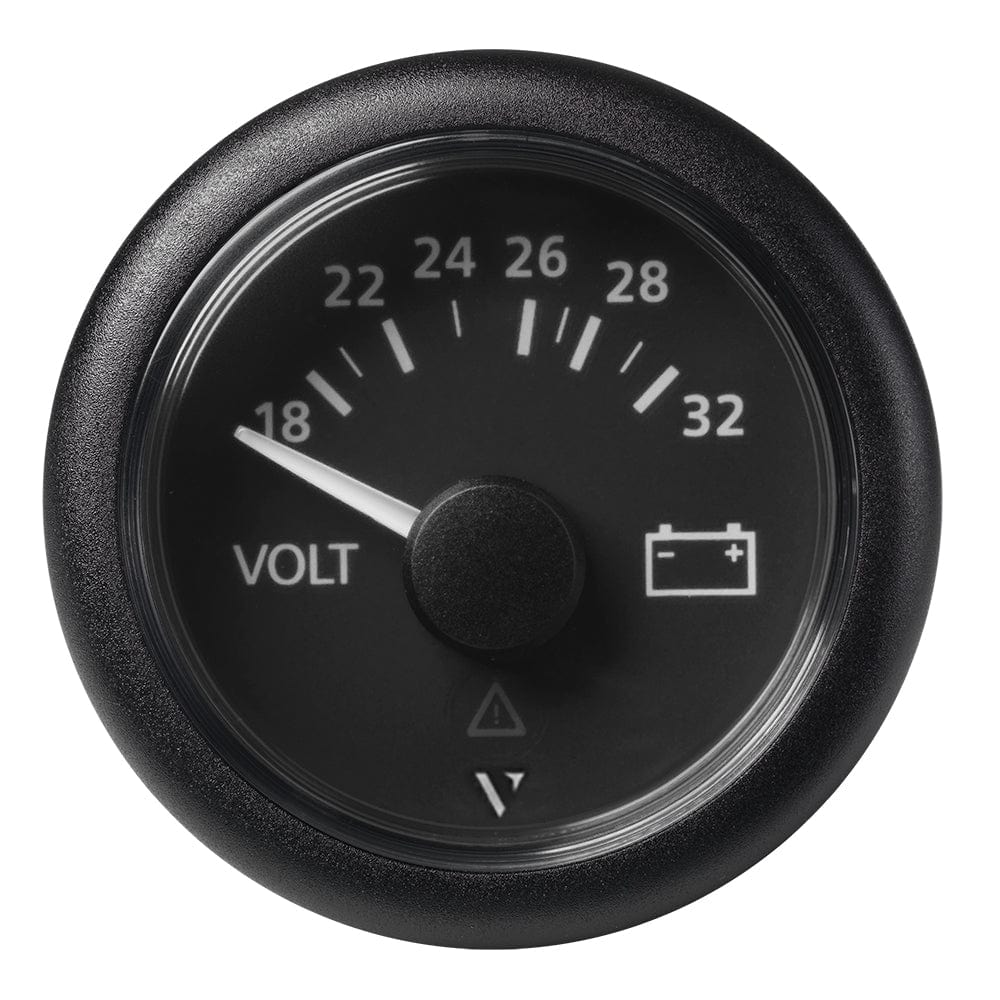

52mm (2-1/16") Viewline Voltmeter 18-32V - Black Dial & Bezel
The Viewline voltmeter displays the status of the generator and battery and their loads on a voltage scale. Values exceeding the normal charging voltages can therefore be monitored exactly.
Features:
- Installation Dimension: 52mm - 2-1/16"
- Color: Black
- Lens: Plastic Double Anti-Fog
- Bezel Model: Black Round
- Measurement Range: 18 - 32V DC
- Category: Voltmeters
- Series: Veratron Viewline
- Application: VDO Engine Monitoring
- Signal Analogue: 0 - 32V DC
- IP Class Front: IP67 (IEC 60529)
- Operating Voltage: 18 - 32 Volt DC
- Functionality: 24 Volt Battery Condition
- Input: Analog
- Bezel Interchangeable: Yes - Clip-On
- Warning Light: Red LED Via Plus And Min
- Communication: Analog
Specifications:
- Box Set: No
- Gauge Size: 2-1/16"
- Gauge Type: Voltmeter/Ammeter
- Series: ViewLine
- Voltage - Input Range (Volts): 18-32v
- Box Dimensions: 3"H x 4"W x 8"L WT: 1.5 lbs
- UPC: 7640178722811
